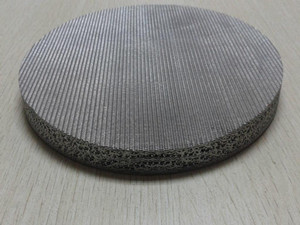

Sintered filter Disc
Stainless steel sintered wire mesh is generally with a five-layers structure which is divided into the protective layer
Material: Stainless steel/ Low carbon iron/ Nickel/ Monel /Inconel/Copper etc
Mesh count& Wire diameter: 1-3100mesh ,0.018-2.03mm
Filter rating: 2-315um
Feature: High filter rating ,Easy to install
Acid-resisting, Alkali-resisting, Corrosion-resisting
Reference :
Stainless steel sintered wire mesh is generally with a five-layers structure which is divided into the protective layer
|
Model |
Nominal Filter Rating |
Structure |
Thickness |
Air |
Bubble Pressure (mm H2O) |
Weight |
Porosity |
|
SYT 5-1 |
1 |
100+400X2800+ 100+12X64+64X12 |
1.7 |
1.81 |
360-600 |
5-layer sintered wire mesh(8.4)
6-layer sintered wire mesh |
37% |
|
SYT 5-2 |
2 |
100+325X2300+ 100+12X64+64X12 |
1.7 |
2.35 |
300-590 |
||
|
SYT 5-5 |
5 |
100+200X1400+ 100+12X64+64X12 |
1.7 |
2.42 |
260-550 |
||
|
SYT 5-10 |
10 |
100+165X1400+100+12X64+64X12 |
1.7 |
3.00 |
220-500 |
||
|
SYT 5-15 |
15 |
100+165X1200+100+12X64+64X12 |
1.7 |
3.41 |
200-480 |
||
|
SYT 5-20 |
20 |
100+165X800+100+12X64+64X12 |
1.7 |
4.50 |
170-450 |
||
|
SYT 5-25 |
25 |
100+165X600+100+12X64+64X12 |
1.7 |
6.12 |
150-410 |
||
|
SYT 5-30 |
30 |
100+450+100+12X64+64X12 |
1.7 |
6.7 |
120-390 |
||
|
SYT 5-40 |
40 |
100+325+100+12X64+64X12 |
1.7 |
6.86 |
100-350 |
||
|
SYT 5-50 |
50 |
100+250+100+12X64+64X12 |
1.7 |
8.41 |
90-300 |
||
|
SYT 5-75 |
75 |
100+200+100+12X64+64X12 |
1.7 |
8.7 |
80-250 |
||
|
SYT 5-100 |
100 |
100+150+100+12X64+64X12 |
1.7 |
9.1 |
70-190 |
Note: The 6-layers sintered wire mesh is to add 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5mm. And it has the higher anti-pressure ability.
