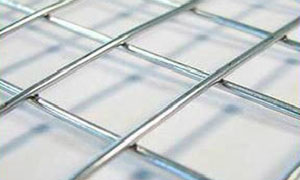

Stainless Steel Welded Mesh
Stainless steel welded mesh is made of high-quality stainless steel wire, through automatic process and sophisticated welding technique.
Stainless steel welded mesh is laid uniformly horizontally and vertically, welded at every intersection.
Stainless steel welded mesh offers level and flat surface.
Stainless steel welded mesh is extensively used in industry and agriculture construction, transport and mines for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screening, fences.
Specification::
Mesh |
Wire Dia. |
Technical Note |
1/4”x1/4” |
BWG 22,23,24 |
Standard width: 0.5-1.8m Standard roll length:30m (Special size available at request) Packing: waterproof paper in rolls (custom packing available at request) |
3/8”x3/8” |
BWG 19,20,21,22,23 |
|
1/2”x1/2” |
BWG 16,17,18,19,2021,22,23 |
|
5/8”x5/8” |
BWG 18,19,20,21 |
|
3/4”x3/4” |
BWG 16,17,18,19,20,21 |
|
1”x1/2” |
BWG 16,17,18,19,20,21 |
|
1-1/2”x1-1/2” |
BWG 14,15,16,,1718,19 |
|
1”x2” |
BWG 14,15,16 |
|
2”x2” |
BWG 12,13,14,15,16 |
|
2”x3” |
BWG 14,15,16 |
|
3”x3” |
BWG 12,13,14,15,16 |
|
2”x4” |
BWG 12,13,14 |
|
4”x4” |
BWG 12,13,14 |
Mesh size |
Wire diameter |
Opening |
Weight |
disc diameter |
40 mesh |
0.17mm |
0.47mm |
0.57 kg / sqm |
1-300mm
|
60 mesh |
0.14mm |
0.29mm |
0.58kg/sqm |
|
80 mesh |
0.12mm |
0.20mm |
0.57kg/sqm |
|
100 mesh |
0.10mm |
0.16mm |
0.50kg/sqm |
|
Remark |
Special size can be made base on your requirements |
Mesh size |
Wire diameter |
Opening |
Weight |
disc diameter |
14 mesh |
0.38mm |
1.44mm |
0.33 kg / sqm |
1-300mm
|
16 mesh |
0.20mm |
1.39mm |
0.10kg/sqm |
|
20mesh |
0.15mm |
1.12mm |
0.07kg/sqm |
|
Remark |
Special size can be made base on your requirements |
